Quick Details

  • Use: ATV Trailer
  • OEM No.: OEM Service
  • Max Payload: 2000kg
  • Place of Origin: Jiangxi, China (Mainland)
  • Brand Name: gino
  • Model Number: single axle
  • Size: 7*5
  • Surface finish: Hot Dipped Galvanized
  • Floor: 2.3 mm checker steel plate
  • Tire: 165/70R14,185R14C(8ply,850kg)
  • Lights: LED
  • OEM: available
  • Springs: 5 leaf eye to eye springs
  • Lights plug: Round or Flat 7 Pin Plug
  • Spare Wheel: available
  • Product name: gino utility trailer
  • Color: Customised

Packaging & Delivery

Packaging Details Flat packing which can use fork lift to unload
Delivery Time 25-35 Days after received the deposit

Heavy Duty Caged Cage 7X5 ft Car utility trailer





                          Gino a professional manufacturer of trailers and trailer parts.

Especially the Popular Single Axle box bolted trailers, Single Axle weld trailers, Tandem bolted trailers, Tandem weld trailers,Hydraulic Tipping trailers(drop down side) ,Hydraulic tipping weld trailers,Camper trailers. Different size can be made

(6*4   7*4    7*5    8*5    9*5   10*5   10*6   12*5   12*6).

winch can be choiced. Can do OEM &ODM trailers or design as customer’s request. Competitive price(factory direct) welcome to visit our factory.

Company Introduction



Product Description



Single Axle Trailers
Finishing: Hot dipped galvanized
Load capacity: 750KG
Frame SteelDraw Bar:70x50x2.5mm,1400mm long to touch the first spring hanger
Chassis:50x50x2.0mm;
Cross bar:50x30x1.5mm
Sheet steel:(bolted)2.3mm checker steel plate floor&1.2mm side wall & doors
Sheet steel: (fully weld)2.3mm checker steel plate floor &2.3mm side wall&doors
Tyre:

165/70R14,185R14C(8ply,850KG) with white powder coated rims

Axle:

45x45mm solid square axle without brake

Springs: 5 leaf eye to eye springs ;45mm wide
CouplingAustralian style & 10mm ADR safety chain
Mudguard: 2.3mm chequer steel plate mudguard

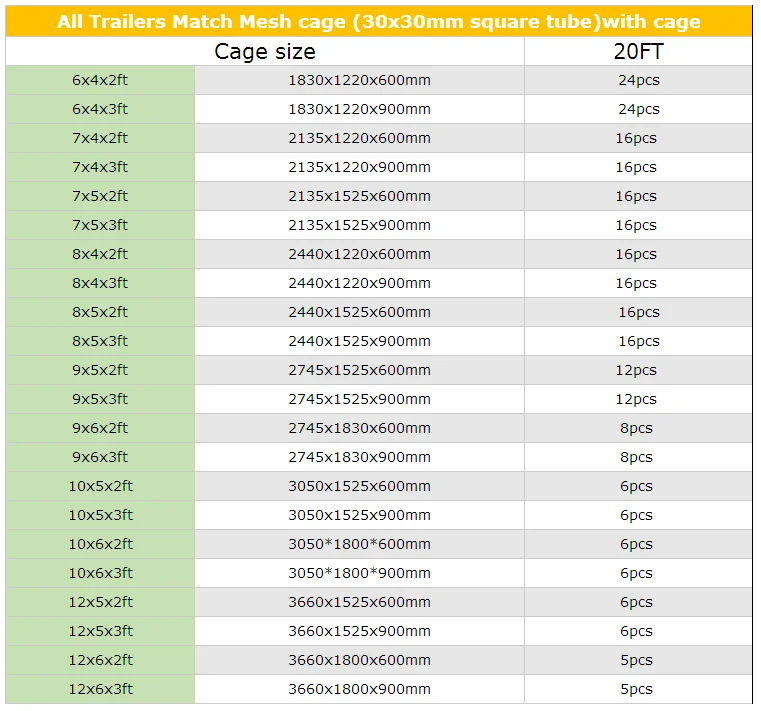

Mesh cage height: 600mm;900mm
Mesh cage : 30x30x1.5mm tube
Jockey wheel: 1000LBS(Single Wheel) &Top swing
Bearing:

68149/12749

Tie down: 20mm round tube tie down all around the trailer
Lights&ReflectorLED light, 7pin round plug
Spare tyre: Non (All trailers do not include the spare wheels)
Tie down:20mm round tube tie down all around the trailer

As buyer style coupling and safety

chain with D-lock:

Yes
size



Single Axle Box trailer(Bolted),without cage
Model No.Trailer box sizeLoadingTare weight20FT40FT
GN-B641830x1220x300mm750KG235KG45pcs100pcs
GN-B742135x1220x300mm750KG285KG40pcs80pcs
GN-B752135x1525x300mm750KG340KG38pcs76pcs
GN-B842440x1220x300mm750KG350KG35pcs72pcs
GN-B852440x1525x300mm750KG360KG30pcs68pcs
Single Axle Box trailer(Fully welded)without cage
Model No.Trailer box sizeLoadingTare weight20FT40FT
GN-BW641830x1220x300mm750KG295KG24pcs80pcs
GN-BW742135x1220x300mm750KG345KG24pcs80pcs
GN-BW752135x1525x300mm750KG400KG18pcs50pcs
GN-BW842440x1220x300mm750KG430KG16pcs40pcs
GN-BW852440x1525x300mm750KG450KG16pcs40pcs
