Flat top heavy duty tandem box trailer

FOB Reference Price:Get Latest Price
US $1,000-1,800 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Use:
Truck Trailer
Type:
Full Trailer
Material:
Steel
Certification:
DOT
Size:
1880*1525*300mm
Max Payload:
2ton
Place of Origin:
China (Mainland)
Brand Name:
Gino
Model Number:
GN-BT85W
Surface finish:
Hot Dipped Galvanized
Floor:
2.5 mm checker steel plate
Tire:
185R14C
Lights:
ADR LED lights (DOT & Emark certification) &
OEM:
available
Axle:
45X45mm Cable disc brake
Springs:
6 leaf slipper springs
Tare weight:
545kg
Load capacity:
2000kg
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Pallets packing which can use fork lift to unload
Port
Jiujiang
Lead Time :
25-35 Days after received the deposit



 Gino a professional manufacturer of trailers and trailer parts.

Especially the Popular Single Axle box bolted trailers, Single Axle weld trailers, Tandem bolted trailers, Tandem weld trailers,Hydraulic Tipping trailers(drop down side) ,Hydraulic tipping weld trailers,Camper trailers. Different size can be made

(6*4   7*4    7*5    8*5    9*5   10*5   10*6   12*5   12*6).

winch can be choiced. Can do OEM &ODM trailers or design as customer’s request. Competitive price(factory direct) welcome to visit our factory.



Company Introduction



Product Description

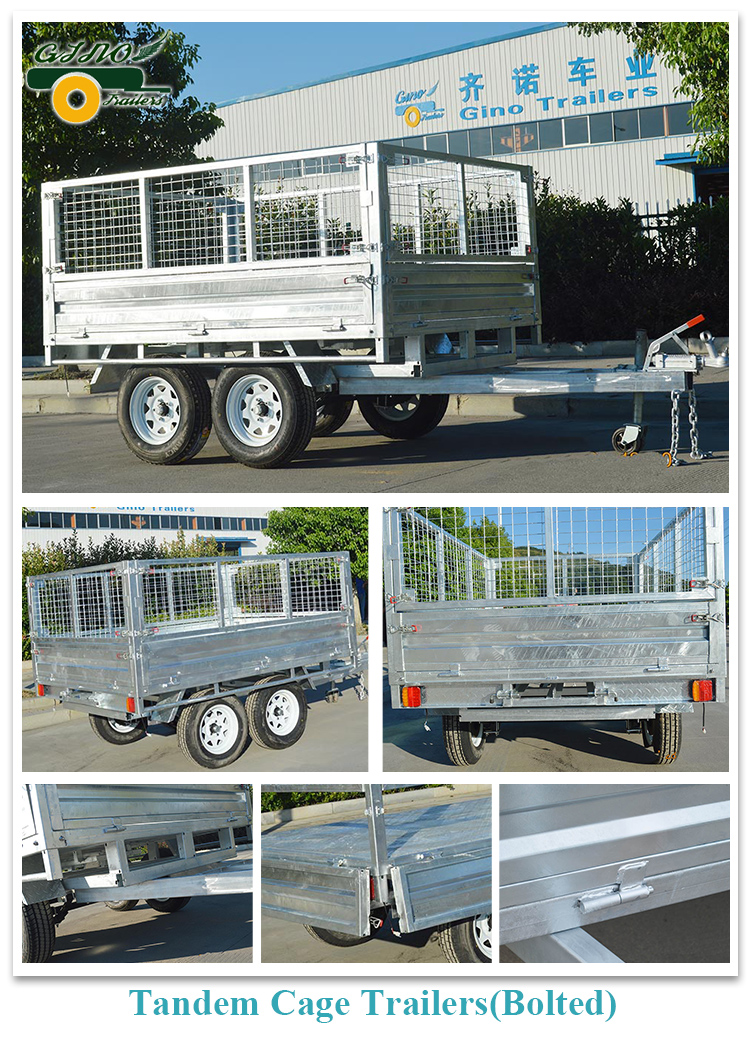

Tandem Trailers
Finishing: Hot dipped galvanized
Load capacity:2000KG

Frame Steel

Draw Bar:100x50x3mm
Chassis:70x50x2.5mm
Cross bar:50x50x2mm
Sheet steel:(bolted)2.5mm checker steel plate floor&1.2mm side wall & doors
Sheet steel:(fully weld)2.5mm checker steel plate floor &2.5mm side wall&doors
Tyre:185R14C(8ply,850KG) with white powder coated rims
Axle:45x45mm cable disc brake on one axle & solid square axle without brake
Springs: 5 leaf heavy duty rocker roller springs
Coupling:Australian style & 12mm ADR safety chain
Mudguard: 2.5mm chequer steel plate mudguard
Mesh cage height: 600mm;900mm
Mesh cage :30x30x1.5mm tube
Jockey wheel: 2000LBS(Double Wheel) & Side swing
Lights&ReflectorLED Taillights with e-mark&DOT certification
Spare tyre: Non (All trailers do not include the spare wheels)
Tie down:20mm round tube tie down all around the trailer

As buyer style coupling and

safety chain with D-lock:

Yes
size



Tandem Box Trailer(Bolted)without cage
Model No.Trailer box sizeLoadingTare weight20FT40FT
GN-B85T2440X1525X300mm2000KG495KG20pcs45pcs
GN-B95T2745x1525x300mm2000KG535KG18pcs42pcs
GN-B105T3050x1525x300mm2000KG585KG16pcs35pcs
GN-B106T3050x1830x300mm2000KG610KG15pcs32pcs
GN-B126T3660x1830x300mm2000KG650KG12pcs26pcs
Tandem Box Trailer(Fully welded)without cage
Model No.Trailer box sizeLoadingTare weight20FT40FT
GN-B85TW2440X1525X300mm2000KG545KG12pcs35pcs
GN-B95TW2745x1525x300mm2000KG595KG12pcs30pcs
GN-B105TW3050x1525x300mm2000KG635KG10pcs30pcs
GN-B106TW3050x1800x300mm2000KG675KG10pcs25pcs
GN-B126TW3660x1800x300mm2000KG710KG6pcs18pcs
